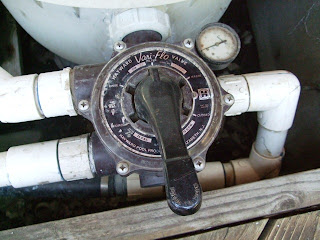

Multiport valve on pool pump/filter |
Last year, it became evident that there was something going on with the multiport valve on the pool pump/filter. This made it so that I pretty much didn't vacuum, backwash or rinse for the last 1/2 of the season because getting the pool to stop draining was an ordeal. I managed to keep the pool pretty clean with filtering, brushing, skimming and scooping, but it is not how I want this season to be.
I dreaded doing this fix because I was sure it was going to be super hard (to get parts, and to do the actual fixing). I prepped by taking pics of the multiport valve and checking out the possibilities online. I then went to the pool supply store that I use and found out what I needed to do. They were awesome with instructions and gave me confidence that I would be able to do it without needing help or any crazy tools.
So today, I decided that not only was I going to get the multiport valve done, I was also going to get the pool pump's electric box secured to the post like it should be. I had already looked at the hole in the back of the electric box and measured for a carriage bolt I could put through the box into the 2x4 behind.
|
Electric box bolted to post |
I killed the power to the pump, and gathered up the tools needed. I held the electric box into place and drilled a hole through the post to match up the hole in the electric box. I put in the bolt and tightened everything down, and with a small screwdriver was able to open the two zip ties I had used to temporarily hold the box in place.
I opened up the skimmer basket on the pump to relieve some pressure from the system and then started working on the 6 bolts surrounding the valve. As I started to loosen them, I could hear the water moving around. Once I took them out, I was able to lift on the handle and top of the valve and see the gasket that needed to be replaced. As soon as I opened it, it was obvious why it was leaking after vacuuming, backwashing and rinsing. More than likely, the renters weren't turning the valve in one direction like they were supposed to and messed up the gasket.
The bad news was that the gasket I had in hand, was not the same as the one in my valve, so I gathered up the handle/top, the two gaskets (one new and one old) and headed over to the pool supply store. I thought I might have to cut the gasket to fit like it should but I wanted to get a professional's opinion first. He recommended the same thing but first wanted to check their stock for the right gasket. My valve is pretty old so getting parts is hit and miss. Fortunately, he had the exact gasket I needed hanging in the supply room and it was 5 bucks cheaper than the first one I bought. He took the other one back (this is why I save packaging...LOL). I double checked on a few details and headed back.
|
Open valve with gasket removed |
I put the gasket into its slot, and screwed everything back into place while keeping the edge gasket from pinching. Went down and turned on the power to the pumphouse, and turned on the filter to check for pressure and leaks. Noticed that there is a small leak from the pressure gauge, but I am planning to replace the gauge soon (just don't have the right one), so I am not going to worry too much about it right now. The leak is super small.
I cleaned the pool (not vacuuming, but everything else) and checked the chemicals. Still need to vacuum, fix some deck boards, set up the tiki torches, paint and assemble the deck table and clean up all the chairs but I felt good about knocking out these two maintenance issues that I was worried would be way harder than they turned out to be.
